Gate Valve

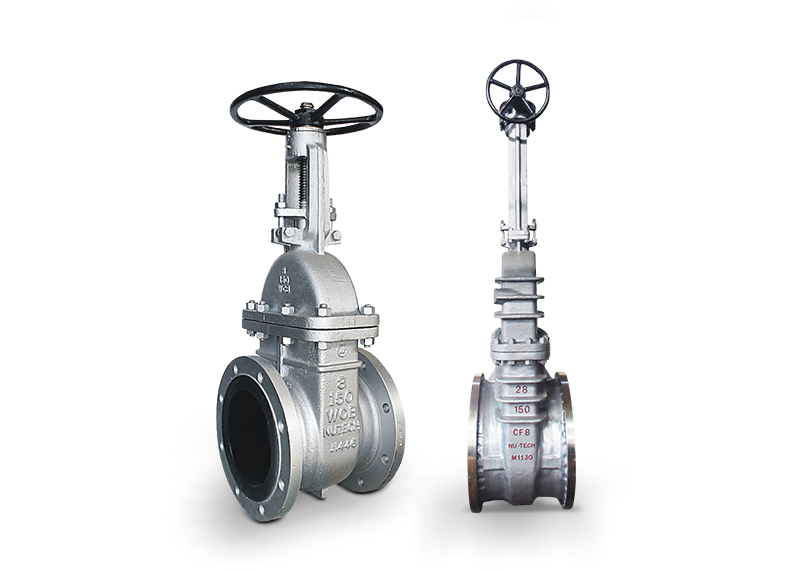

Cast Gate Valve

NU-TECH cast steel gate valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of American Petroleum Institute standard API600 & API 6D. British standard BS1414 BS EN 1984 and generally, Conform to American Society of Mechanical Engineers standard ASME B16.34 valves are available in a complete range of body/bonnet materials and trims.

Get Quote →

01 / 00

Design Features

Full Port Design
Os & y Out Side Screw and Yoke
Bb. Bolted Bonnet
Flexible Wedge, Fully Guided
Choice Of Solid Or Split Wedge
Renewable Seat Rings
T-head Stem
Rising Stem And Non-rising Hand Wheel
Flanged Or Butt Welding Ends
Available With Bg Operator

Specifications

Steel Gate Valves API 600/API6D
Steel Gate Valves ISO 10434/ISO 14313
Steel Valves ASME B16.34
Face To Face ASME B16.10/API 6D
End Flanges ASME B16.5
Butt Welding Ends ASME B16.25
Inspection And Test API 598/API 6D

Range Of Materials

Standard body/bonnet materials include nine grades of carbon, low alloy & stainless steels. For special applications they can be supplied in other grades of alloy & stainless steel. There’s a full range of trim materials to match any service optional packing & gasket materials are available for a full range of service conditions.

Operation	Large hand wheels for easy operation. Also available with gearing motor actuators, pneumatic or hydraulic actuators for more difficult services
Live Load Packing	In services requiring frequent cycling or with high pressure/temperature variations, live loading extends the service life between maintenance periods by requiring less instruments. Believille springs are employed to provide constant packing gland stress
Wedge	Integral guide rib faces assure self-centering of wedge. flexible wedge gate valve has a one piece. twin-disc wedge, which is designed so that each half flexes independently. Available in solid flex split and his designs.
OS & Y	Outside screw and yoke. Cast steel gate valve yoke integral with bonnet for 150 Lbs-8” 600 Lbs-6” 900 Lbs-4” & small.
BB	Bolted bonnet, Welding bonnet and pressure seal bonnet in services requiring frequent cycling or with high pressure/tempareture variations.
End Connections	A choice of flanged, RTJ flanged or butt welding end for piping flexibility.
Lantern Ring & Double Pacing Set	Lantern ring leak-off fitting connection & double packing stack is optionally available for critical services.
Yoke Sleeve	Extra long thread engagement between yoke sleeve and stem provide long thread life. Valves of sizes larger than 150 Lb-12”, 300 Lb-10”, 600 Lb-6”, 900 Lb / 1500 Lb / 4” are regularly provided with roll bearing yokes.
Stem	All wedge gate valves are provided with upset forged T-head stems by forging the T-head. The stem at the stem-wedge connection is strengthened. This design also allows the wedge possibility of a bent stem jamming the wedge.
Body to Bonnet Joint	A flat face gasket joint is used in the 150lb valves. A male and female joint is used in 300Lb to 600Lb valves. Ring joint is 900Lb & higher rated valves.

Available Modifications For Nu-tech Cast Steel Valves

Trim Changes
End Connection Modifications
Packing and Gasket Change
Operator Mounting
Handwheel Extensions
By-Pass
Customer Specified Coatings
Weld End Bore Changes
Oxygen & Chlorine Clearing & Packaging
Packaging
