Automatic Control Valve

Pump Control / Solenoid On-Off
Control Valve (ACV-1000)

NU-TECH ACV Pump Control Valves are used to minimize surges commonly associated with the starting and stopping of pumps.

Get Quote →

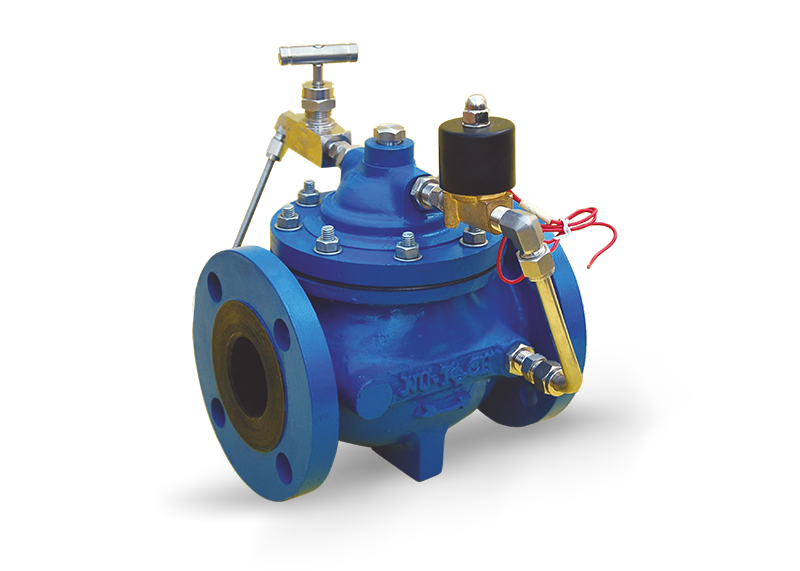

Pump Control / Solenoid On-Off Valve ACV-1000

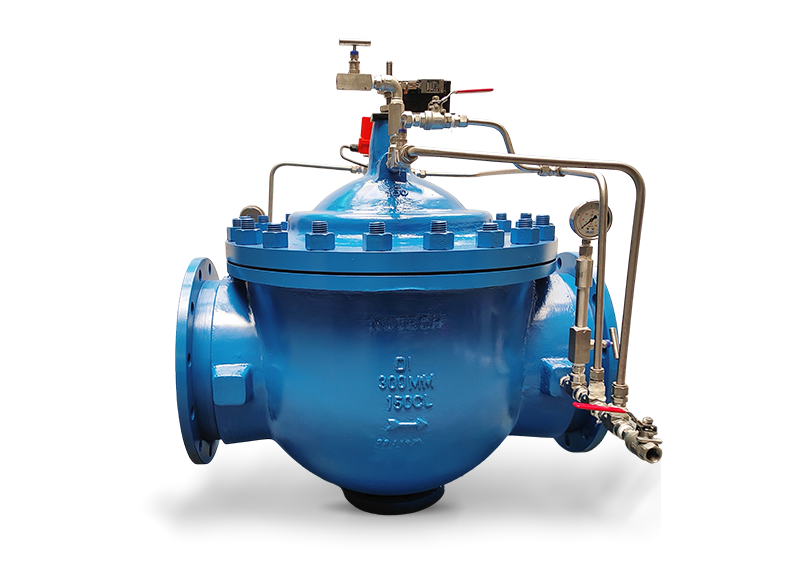

Pump Control / Solenoid On-Off Valve ACV-1000
01 / 00

Feature

  • Easily maintained without removal from the line.
  • Single chamber & double chamber options.
  • Replaceable seat ring.
  • Heavy-duty, nylon-reinforced diaphragm.
  • Operates automatically off line pressure.
  • Valves are factory tested.
  • Diaphragm assembly guided top and bottom.
  • Separate adjustable opening and closing speed controls.

Combine Features

  • Check function.
  • Pressure sustaining.
  • Pressure reducing.
  • Rate of flow feature.

Operation

  • Minimizes surges associated with pump start/stop.
  • Closes when pump discharge pressure falls below an adjustable minimum, increasing back pressure against the pump.
  • For booster pumps: installed inline on the discharge of the pump.
  • For deep-well pumps: installed on a bypass line between the pump discharge and the pump check valve.

Specifications

End Connection Flanged End, Threaded End
Face to Face Standard Manufacturing Standard
End connection Standard DIN EN 1092-1, ASME B16.5
Testing Standard API 598
Sizes 1/2” to 28”
Class 150#, 300#, PN 6, PN 10, PN 16, PN 25
Media Water
Body Material CI/CS/SS/Alloy Steel etc.
Trim Material SS304/SS316 etc.
Soft Seat Material NITRILE/VITON/EPDM etc.
