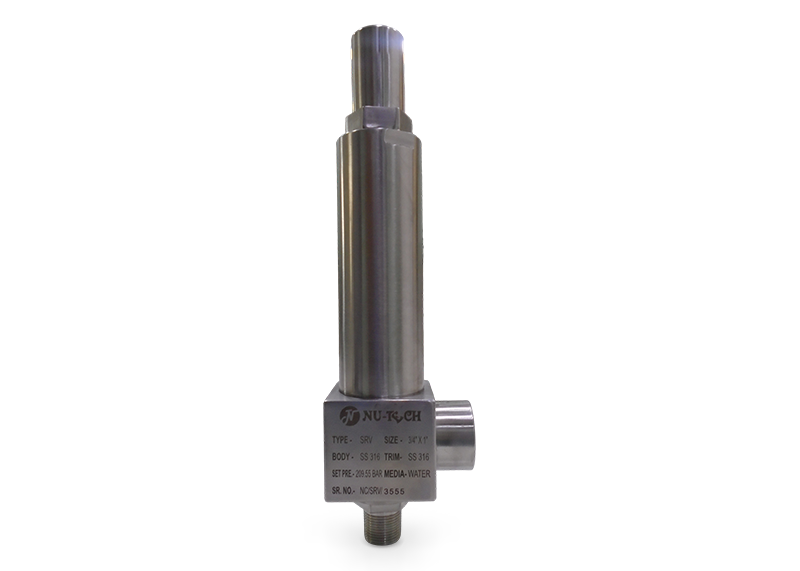

Safety Relief Valve (H 500 – High Pressure)

NU-TECH Safety Relief Valves are designed and manufactured to provide maximum service life and dependability. All Safety Relief Valves meet international design standards and are available in a complete range of body/bonnet materials and trims.

Get Quote →

01 / 00

Features

Available with soft seated & metal seated design
Set Pressure Range: 0.1 bar to 30 bar
Operating Temperature Range: -29°C to 400°C
Easy maintenance

Applications

Heat exchangers
Low and Medium Pressure Steam
High pressure Chemical Processes

Specifications

End Connection	Threaded End
Design Standard	API 520, EN ISO 4126-1, ASME BPVC SEC VIII DIV-I
Testing Standard	API 527
Threaded Standard	ASME B1.20.1, DIN ISO 228 PART 1
Media	Steam, Gases and Liquids
Size	DN 15 to DN 25
