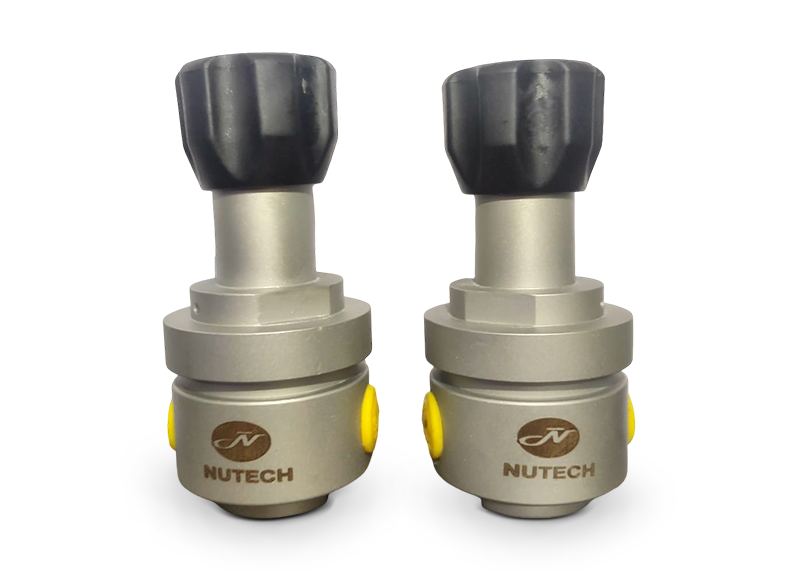

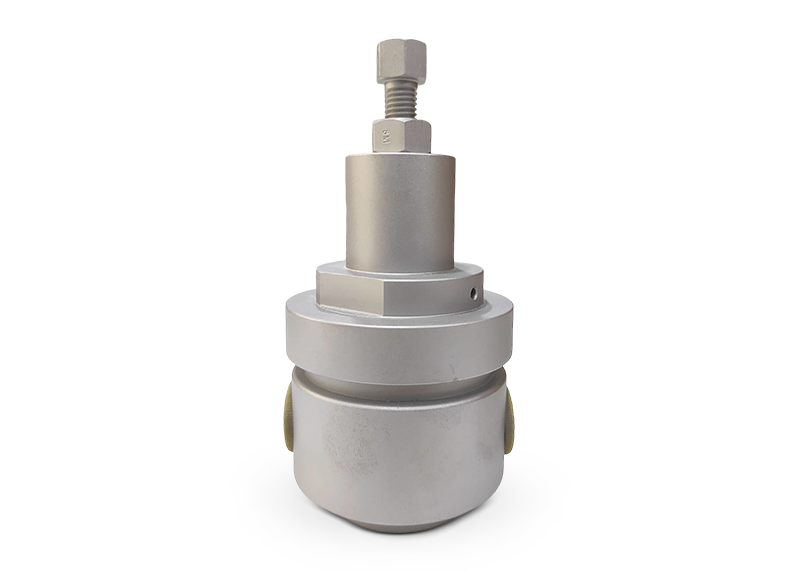

Pressure Regulator (HP-263)
NU-TECH Pressure Reducing Valves reduce high stream pressure to a constant downstream pressure and maintain outlet pressure across a broad range of flow.
Pressure Reducing Valve
Specifications
| Media | All gases compatible with materials of construction; for other media consult factory |
| Inlet Pressure | 6000 psig |
| Outlet Pressure | 4–50, 4–150, 4–250, 4–500 psig |
| Proof Pressure | 8500 psig |
| Burst Pressure | 10000 psig |
| Materials | Body – Stainless steel |
| Flow Capacity | Cv = 0.08 |
| Operating Temperature | -55°C to 75°C |
| Inlet Size | 1/8", 1/4", 3/8", 1/2" NPTF/BSPF |
